VERSA-LOK RETAINING WALL SYSTEMS

VERSA-LOK Weathered Standard used in poolside landscape

Four different segmental retaining wall options: Standard, Accent^®, Cobble^® and Mosaic^®. One trusted, innovative company. VERSA-LOK^® Retaining Wall Systems has been creating "Solid Solutions™" for homeowners since 1987 by offering the only solid, pinned segmental retaining wall system.

Our 100%-solid, low-absorption, high-strength concrete units provide long-lasting durability and a limitless number of design options.

Create everything from backyard walls to square planters using Standard, Cobble or Accent VERSA-LOK units. Or combine the three to form the random-patterned Mosaic Retaining Wall System. Whatever your choice, solid VERSA-LOK walls are easy to install and provide a lifetime of virtually maintenance free performance.

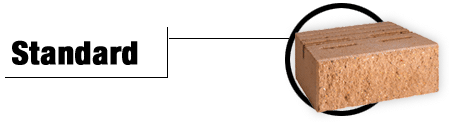

Our original, most popular unit. Contractors, engineers and landscape architects agree its solid construction and unique pinning system provide an endless array of design options, hardcore durability and the fastest, easiest installation available. Also available in an increasingly-popular Weathered™ option at selected dealers.

VERSA-LOK Weathered Standard unit

Standard Unit Measurements:
Height:	6" (152.4mm)
Width (face):	16" (406.4mm)
Width (rear):	14" (355.6mm)
Depth:	12" (304.8mm)
Face area:	2/3 sq. ft. (.062 sq m)
Weight:	82 lbs. (37.19kg)
Weight/Face Area:	123 lbs./sq. ft (599.84kg/sq m)

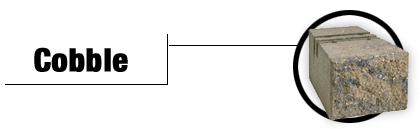

About half the size of the standard unit, Cobble units are perfect for planters, small walls and garden-variety projects as well as large, expansive commercial and governmental walls. Smaller and conveniently lighter than its big brother Standard unit, Cobble units possess durable characteristics equal to units twice its weight. Of course, Cobble units use the same top-down pinning systems as other VERSA-LOK units, saving you time and installation costs.

VERSA-LOK Weathered Cobble unit

Cobble Unit Measurements:
Height:	6" (152.4mm)
Width (face):	8" (203.2mm)
Width (rear):	6" (152.4mm)
Depth:	12" (304.8mm)
Face area:	1/3 sq. ft. (.031 sq m)
Weight:	38 lbs. (17.24kg)
Weight/Face Area:	114 lbs/sq ft. (556.13 kg/sq m)

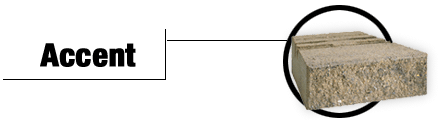

VERSA-LOK Accent unit
A slimmed-down version of the Standard unit, Accent units measure 4 inches tall by 12 inches wide. They're lighter than Standard units, but engineered with the same high-strength, low-absorption concrete. Easily installed, Accent units draw minimal attention to the wall, saving the spotlight instead for surrounding landscapes, buildings and homes.

Accent Unit Measurements:
Height:	4" (101.6mm)
Width (face):	12" (304.8mm)
Width (rear):	8" (203.2mm)
Depth:	12" (304.8mm)
Face area:	1/3 sq. ft. (.031 sq m)
Weight:	36 lbs (16.33kg)
Weight/Face Area:	108 lbs/sq ft (526.77 kg/sq m)

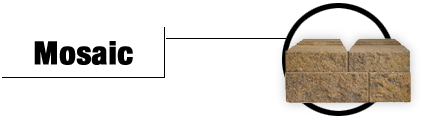

VERSA-LOK Mosaic panel
VERSA-LOK Weathered Mosaic panel Create eye-catching designs by combining all three VERSA-LOK units to form the random-patterned Mosaic Retaining Wall System. Attractive and durable, the Mosaic system utilizes the same four-unit panel (10" x 24") –consisting of one Standard, one Cobble and two Accent units–giving each wall an interesting and visually arresting look and feel. Although its pattern may seem complex, the simplistic four-unit Mosaic panels are just as easy to install as our Standard, Cobble or Accent Retaining Wall Systems.

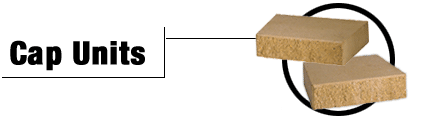

VERSA-LOK caps

Cap units can put the finishing touch on your VERSA-LOK wall. They're available in two styles–A and B–and are 3-5/8" tall by 14" wide (at the face). Caps can be used with all types of designs. For straight walls, use both caps alternately. Outside curves require A caps only while inside curves use B caps.

A Cap Unit Measurements:
Height:	3 5/8"
Width (face):	14" (355.6mm)
Width (rear):	12" (304.8mm)
Depth:	12" (304.8mm)
Face area:	1/3 sq. ft. (.031 sq m)
Weight:	40 lbs

B Cap Unit Measurements:
Height:	3 5/8"
Width (face):	14" (355.6mm)
Width (rear):	16" (406.4mm)
Depth:	12" (304.8mm)
Face area:	1/3 sq. ft. (.031 sq m)
Weight:	50 lbs

* Actual size and height of units may vary slightly by region.
